Send Inquiry40T Container Handling RMG Gantry Crane

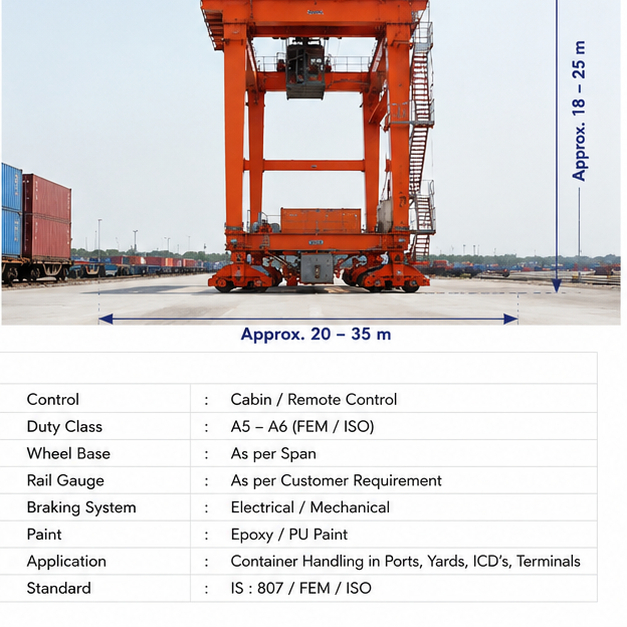

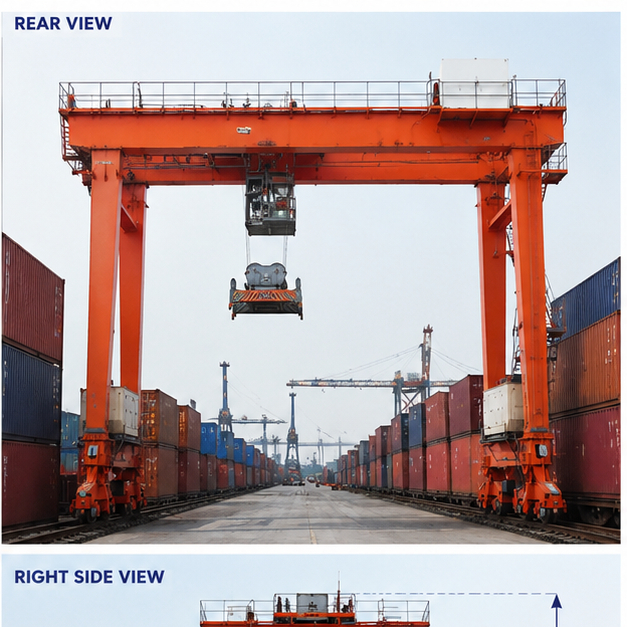

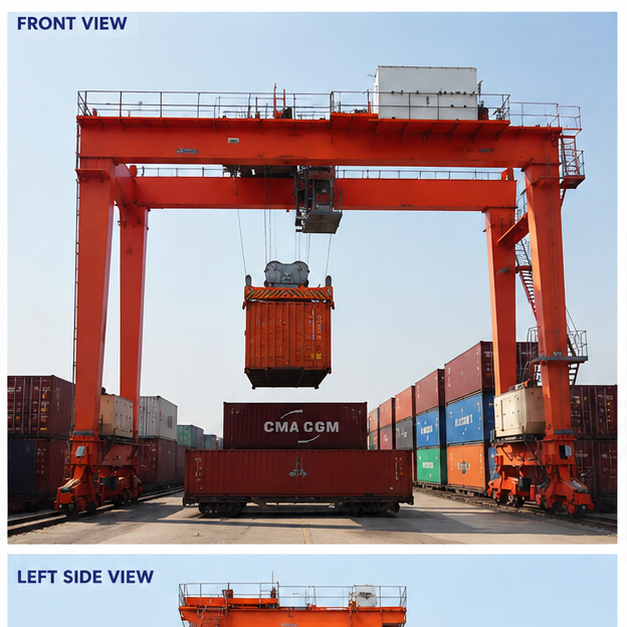

40T Container Handling RMG Gantry Crane Specification
- Feature
- High Quality
- Emergency Stop
- Yes
- Condition
- New
- Power Source
- Electric
- Usage
- Industrial
- Type
- Gantry Crane
- Max. Lifting Load
- 40 Tonne
- Span
- 18 M - 25 M
40T Container Handling RMG Gantry Crane Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- Mudra / JNPT
- Payment Terms
- Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Supply Ability
- 2 Units Per Month
- Delivery Time
- 8 Week
- Sample Available
- Yes
- Packaging Details
- AS PER STANDARD
- Main Export Market(s)
- Asia, South America, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001:2015
About 40T Container Handling RMG Gantry Crane
|
Typical RMG Model Range |
|
|
Hoisting capacity under spreader |
35T / 40T |
|
Gantry span |
22 - 70 m |
|
Lifting height |
From 9.2 m for 1 over 2 Up to 26.9 for 1 over 8 |
|
Hoisting speed without load |
40 m/min |
|
Hoisting speed with rated load |
30 m/min |
|
Trolley travel (with or without load) |
30 m/min - 40 m/min |
|
Gantry travel (with or without load) |
120 m/min - 130 m/min |
Advantages of RMG for Yard Stacking
- Suitable for both port and rail terminals.
- Suitable for various yard space conditions.
- Increased yard capacity with wider and higher stack possibilities.
- Reduction in emissions and noise.
- Minimal maintenance.
- Electric supply for energy efficiency and reduced running cost.
Motors / Suppliers
- All drives are sized for maximum torque and power requirements.
- All major components are sourced from reputable manufacturers.
- The control system used has been specifically developed for container cranes by Kanext, which has resulted in a flexible, robust construction with exceptional reliability.
- The "plug-in" modular construction of the electronic equipment is designed to maximise crane availability and minimise the necessity for highly skilled
- electronic personnel.
Diagnostic and Managment System Summary of Main System Features
- General Control Overview.
- "Crane ON" status.
- Individual Drive ON screens (one for each drive).
- Detailed drive data (motor current, voltage, speed).
- Wind speed and history.
- Spreader status.
- Fault stack.
- Load statistics.
- Maintenance.
Advantages by Design
The 40T Container Handling RMG Gantry Crane is a robust industrial lifting solution designed to handle loads up to 40 tonnes. This electric-powered gantry crane boasts a span ranging from 18 meters to 25 meters, making it versatile for various industrial applications. With a focus on quality, this crane features high-quality components and is suitable for heavy-duty use. Equipped with an emergency stop function, safety is prioritized during operations. Whether used in manufacturing facilities, warehouses, or ports, this new-condition gantry crane offers reliability and efficiency for your material handling needs.
- Minimal spreader positioning times.
- No-sway in hoist, trolley and travel directions.
- Anti-skew..
- Anti-Sway System
- Lower energy consumption.
- All electric spreader - Less maintenance.
- Significant increase in productivity when compared with alternative designs.
- Kanext designed and built.
- logic control system.
- Status of switchgear and external electrical components.
- Stores faults.
- User-friendly interface with easy to use colorful screens.
- Independence of crane logic system, therefore does not interfere with
- crane control in the event of self failure.
- Includes trending and tables for production data and drive data
The 40T Container Handling RMG Gantry Crane is a robust industrial lifting solution designed to handle loads up to 40 tonnes. This electric-powered gantry crane boasts a span ranging from 18 meters to 25 meters, making it versatile for various industrial applications. With a focus on quality, this crane features high-quality components and is suitable for heavy-duty use. Equipped with an emergency stop function, safety is prioritized during operations. Whether used in manufacturing facilities, warehouses, or ports, this new-condition gantry crane offers reliability and efficiency for your material handling needs.
FAQs of 40T Container Handling RMG Gantry Crane:
Q: What is the maximum lifting load of the 40T Container Handling RMG Gantry Crane?
A: The maximum lifting load of the 40T Container Handling RMG Gantry Crane is 40 tonnes.
Q: What type of power source does the gantry crane operate on?
A: The gantry crane operates on electric power.
Q: Is the gantry crane suitable for industrial use?
A: Yes, this gantry crane is designed for industrial applications.
Q: Does the gantry crane have an emergency stop feature?
A: Yes, the crane is equipped with an emergency stop function for enhanced safety.
Q: What is the span range of the 40T Container Handling RMG Gantry Crane?
A: The span of the gantry crane ranges from 18 meters to 25 meters.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Gantry Crane Category

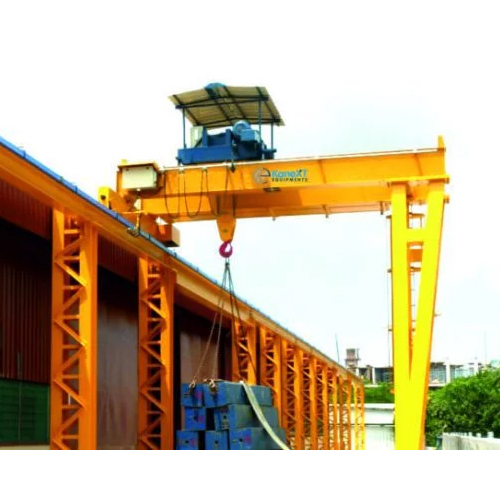

Semi Goliath Gantry Crane
