Double Girder Eot Crane - Safe Working Load 500 To 100,000 Kgs | Golden Yellow, Electric Control, Emergency Stop, 12-month Warranty

Double Girder Eot Crane - Safe Working Load 500 To 100,000 Kgs | Golden Yellow, Electric Control, Emergency Stop, 12-month Warranty

800000.0 INR/Unit

Get a Price/Quote

Product Details:

Gearbox PARREL / HELICAL/BEVEL
Product Type Double Girder EOT Crane - Safe Working Load 500 To 100,000 Kgs | Golden Yellow, Electric Control, Emergency Stop, 12-month Warranty
Usage Industrial
Height 1000 Millimeter (mm)
Brake DISC
Color GOLDEN YELLOW
Traveling Speed 4 mm/m
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Double Girder Eot Crane - Safe Working Load 500 To 100,000 Kgs | Golden Yellow, Electric Control, Emergency Stop, 12-month Warranty Price And Quantity

Price 800000.0 INR/Unit
Minimum Order Quantity 1 Unit

Double Girder Eot Crane - Safe Working Load 500 To 100,000 Kgs | Golden Yellow, Electric Control, Emergency Stop, 12-month Warranty Product Specifications

Brake DISC
Color GOLDEN YELLOW
Rated Lifting Moment 5
Power Supply 415
Lifting Speed 4 mm/m
Product Type Double Girder EOT Crane - Safe Working Load 500 To 100,000 Kgs | Golden Yellow, Electric Control, Emergency Stop, 12-month Warranty
Span 5- 70 METER
Usage Industrial
Height 1000 Millimeter (mm)
Load Capacity 5 Kilograms (kg)
Lifting Mechanism ELECTRICAL
Max. Lifting Load 5 Kilograms (kg)
Gearbox PARREL / HELICAL/BEVEL
Max. Lifting Height 50 Meter (m)
Emergency Stop Yes
Length 35 Foot (ft)
Width 400 Millimeter (mm)
Application ALL TYPE OF INDUSTRIES
Weight 5000 Kilograms (kg)
Condition New
Traveling Speed 4 mm/m
Operating Mode ELECTRICAL
Voltage 50 Volt (v)

Double Girder Eot Crane - Safe Working Load 500 To 100,000 Kgs | Golden Yellow, Electric Control, Emergency Stop, 12-month Warranty Trade Information

FOB Port mundra / jnpt
Payment Terms Cash Against Delivery (CAD) Cash Advance (CA) Cash in Advance (CID) Cheque Letter of Credit at Sight (Sight L/C) Letter of Credit (L/C)
Supply Ability 10 Unit Per Month
Delivery Time 4 Week
Sample Available Yes
Packaging Details as per clients
Main Export Market(s) Asia North America Middle East Africa
Main Domestic Market All India
Certifications ISO 9001:2015

Product Description

Span: 5 mtrs. to 70 mtrs.
Safe Working Load: 500 kgs. to 1,00,000 kgs.

Class of Duty/Standards
Equivalent to M3, M5, M7, M8 as per IS:3177 / IS:807

Drive System
Accordance with IS : 3177 Structural Parts With IS : 807 and Other Miscellaneous Parts with IS : 3177, IS : 3938 and IS:4137

Speeds
Selected depending on client specifications/application/shed dimensions

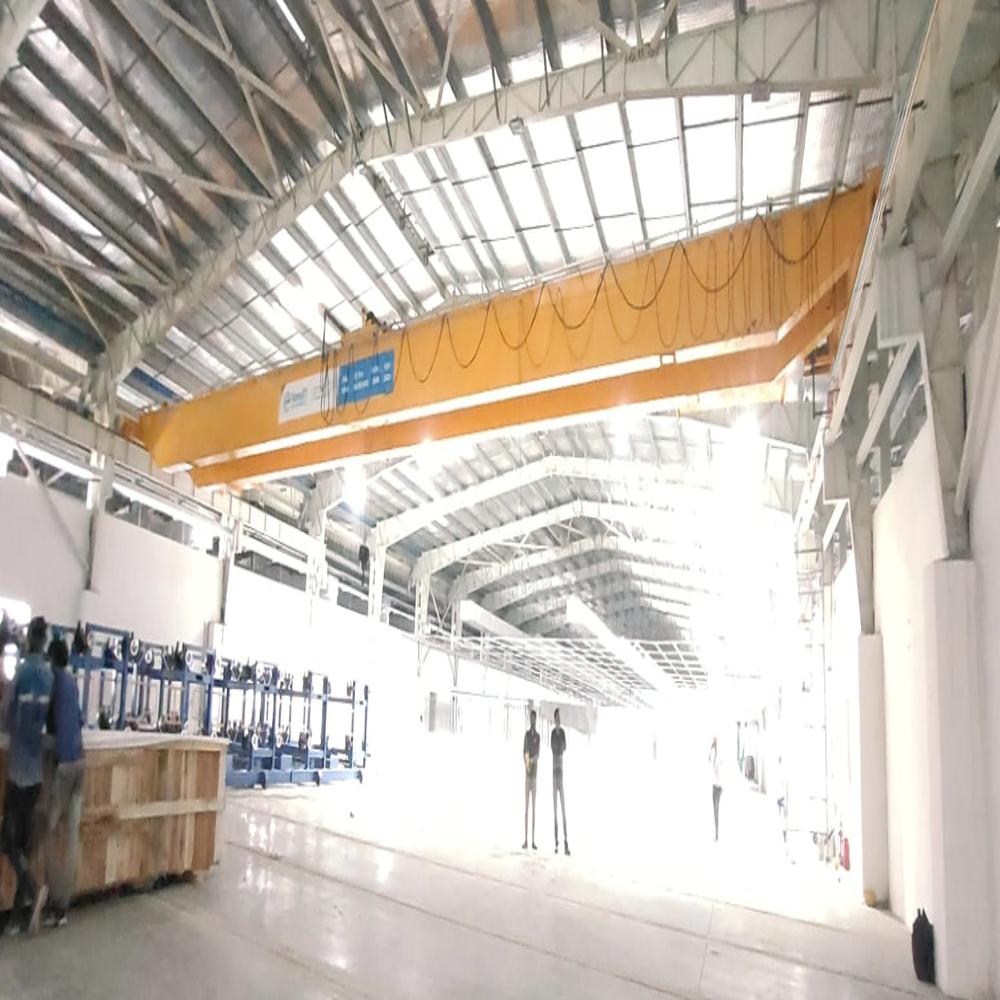

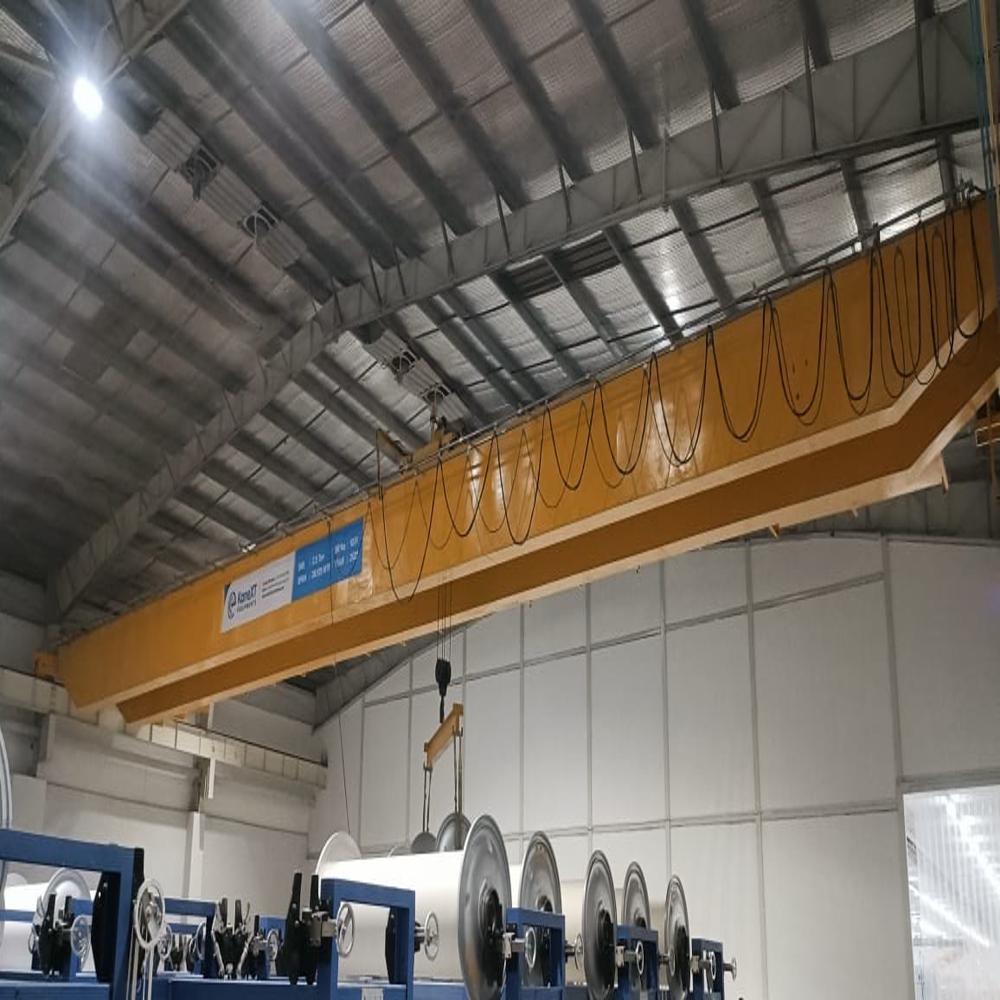

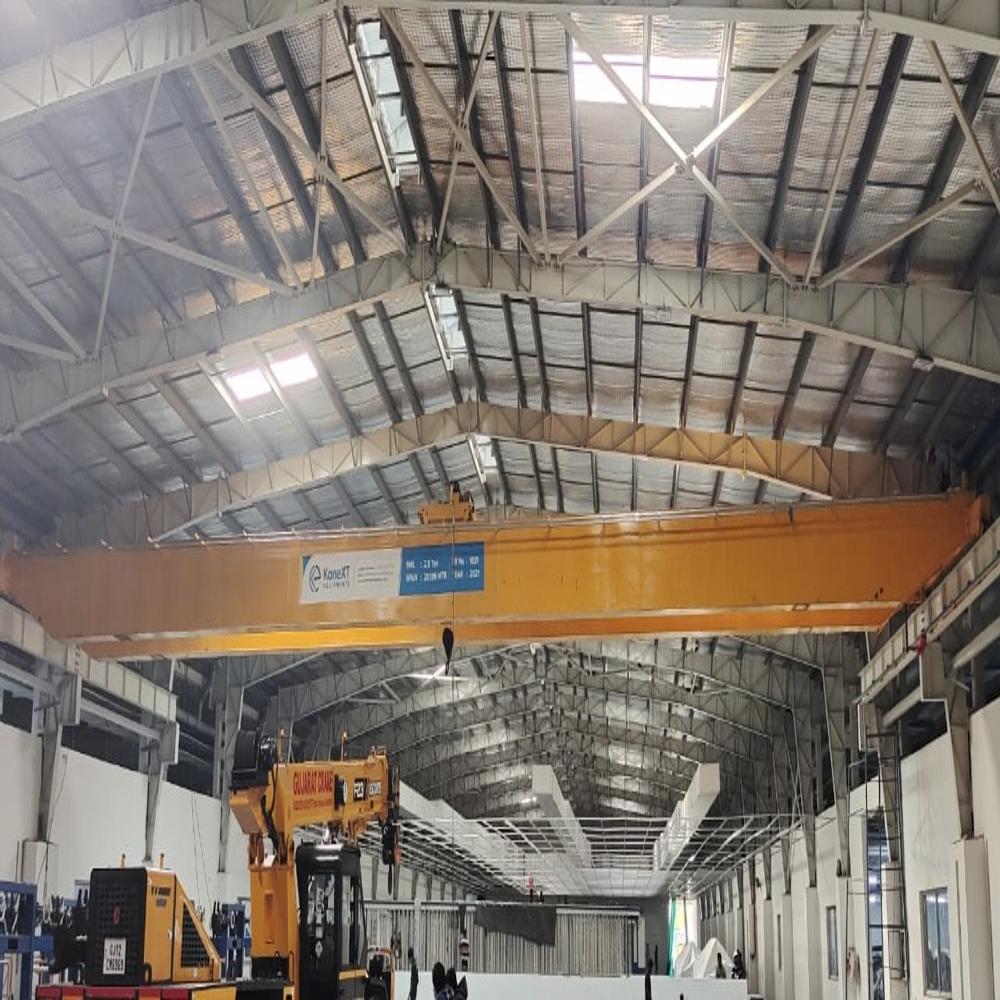

A Double Girder EOT (Electric Overhead Traveling) Crane is a heavy-duty lifting solution commonly used in industrial environments like warehouses, manufacturing units, and steel plants. It is characterized by two parallel girders that support the crab/trolley and hoist, allowing for the movement of heavy loads across the span of the crane.

Key Features

Two main girders span across the width of the crane, supporting the hoist.
Trolley/Crab moves on rails placed on top of the girders.
High lifting capacity, typically from 10 tons to 500+ tons.
Larger span and higher lifting height than single girder cranes.
Suitable for heavy-duty operations and frequent usage.
Can be customized for hazardous areas (flameproof, explosion-proof).

Main Components

Bridge Girders Two girders that form the bridge.
End Carriages Support the girders and house the wheels that move on the gantry rail.
Crab/Trolley Moves on the girders, carries the hoisting mechanism.
Hoist Lifts and lowers the load.
Control Panel Electrical controls for crane operations.
Long Travel Mechanism Moves the entire crane along the rails.
Cross Travel Mechanism Moves the crab across the girders.

Advantages

Higher load capacity compared to single girder cranes.
Better stability and safety for heavy loads.
Can accommodate auxiliary hoists on the same bridge.
Allows for precise handling of large and bulky items.

Limitations

Higher cost and installation complexity.
Heavier structure, needing stronger support columns.
Not ideal for light-duty or space-constrained facilities.

Applications

Steel plants
Heavy machinery manufacturing
Power plants
Shipbuilding yards
Automotive assembly lines
All type of manufacturing , warehousing, constructions etc
